Meat Grinder

Meat Grinder

Technical Parameters of Frozen Meat Grinder

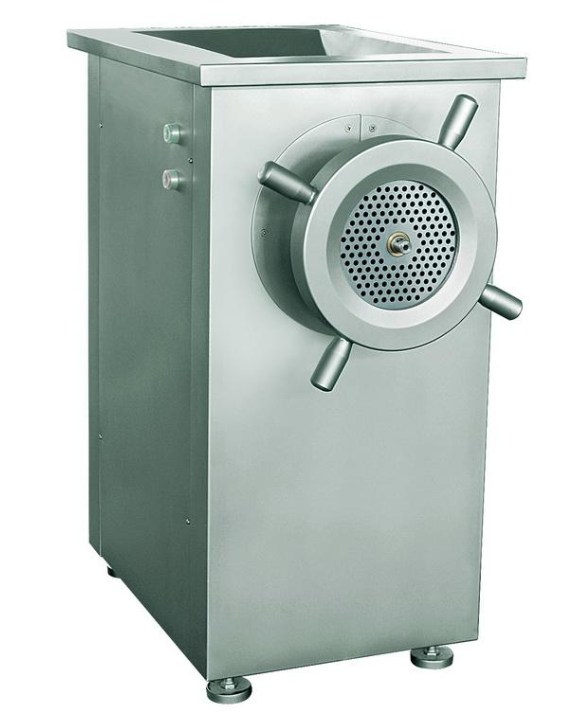

Model QLJ420 C300G
Power 7.5KW 55KW
Capacity 600KG/H 3000-5000KG/H
Weighty 350KG 2100KG
Overall Dimension 1100*530*1550(mm) 1300*1400*2000(mm)

Frozen Meat Grinder


1. Body material: shell, hopper, backdoor (thickness:4mm SUB304 Stainless Steel)

2. Electrical Box: thickness: 2mm Sub304.stainless Steel

3.Auger Parts:U-shape botto is made of 6mm SUB304 stainless steel, frontpart is made of 12mm reinforce panel, and backpart is 14mm.It is weld.

 4. Auger, reamer, auger box, Harvard clips, Soame cap, speed reduction back axel box, pedals plate and other parts is made of Sub304.

5.Reinforce material inside machine is Q235, such as square tube 100x50x4 and 100x50x4, groove 100x50x4, motor support, etc.

6. Shaft,orifice plate,cutter is made of 40Cr material.

7.Motor sheaveInternational standard tension B with 6 sheave ball cast iron material.

8. Low noise tong torque reducer( cast steel shell, gear technology)

Technical Parameters of Frozen Meat Grinder

1. Application voltage environment should be given when making order, so as to choose the proper electric motor.
2. The warranty time for our Frozen Meat Grinder is 1 year, excluding belt. We offer charged maintenance services when warranty time is over.
3. Always wearing noise reduction earplug and hygienic uniform. Non-trained personnel are forbidden for machine operation.
